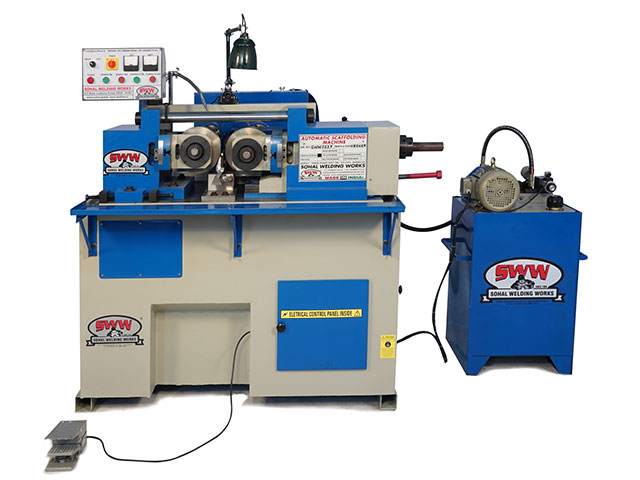

Automatic Two Thread Rolling Machine manufactured by Sohal Welding Works. This machine is used for making threaded bars, bolts, studs, u-bolts, foundation bolts etc. This machine is Hydraulic operated with 2 thread rolls which are made from D2 material for long life operation.They can be used again and again after reshaping them.
Machine is fitted with very easy to operate control panel, as well as machine, can be operated from foot pedal too. Coolant oil which is having auto circulation provides long life to the thread rolls of the threading machine as well as helps to give proper finish to the threaded rods. We are from Ludhiana, Punjab,India and working in the field of welding machines since 1986 and We are now providing a complete solution to scaffolding plants all around the world.
Enquiry Now
| Two Roll Type |
|
SWW50 | SWW80 | |||
|---|---|---|---|---|---|---|
| Max. Pitch can be Rolled | 3.5 Pitch | 4.0 Pitch | 5.0 Pitch | |||
| Max. Dia can be Feed | 40mm | 50mm | 80mm | |||
| Max. Pitch can be in Through Feed | 28mm | 35mm | 40mm | |||
| Thread Roll Width | 125mm | 150mm | 180mm | |||
| Max. Rolling Length Through Feed | INDEFINITE | INDEFINITE | INDEFINITE | |||
| Thread Roller Dia | 180mm | 200mm | 220mm | |||
| Spindle Dia | 54mm | 69.85mm | 76.20mm | |||
| Max. Rolling Force | 12 TON | 15 TON | 24 TON | |||
| Spindle Motor | 3 H.P. | 5 H.P. | 7.5 H.P. | |||
| Hydraulic Motor | 2 H.P. | 3 H.P. | 5 H.P. | |||
| Coolant Pump | 0.16 H.P. | 0.16 H.P. | 0.25 H.P. |
